This 3.7V 5200mAh lithium ion battery pack is CB certified and has IEC62133-2:2017 report. It can be widely use for
*AI smart products
*Head light
*Water meter
*Flashlight
*GPS
*ETC device
enquiry

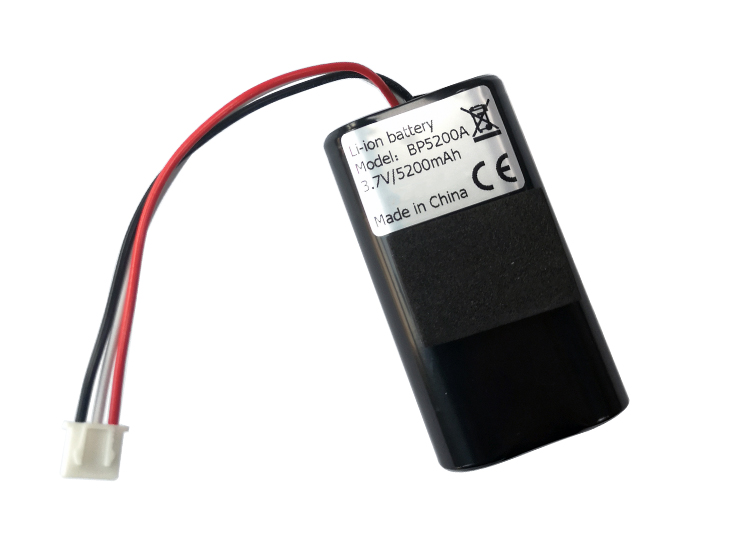

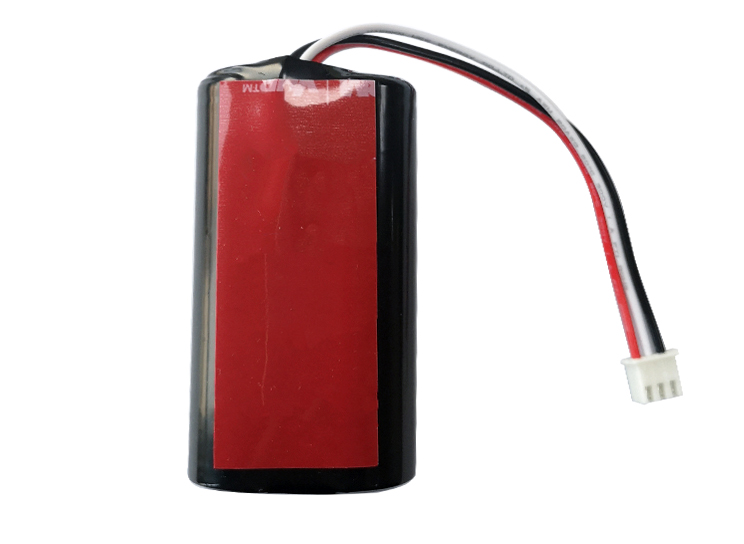

18650-1S2P rechargeable li ion battery pack 3.7V 5200mAh CB IEC62133 certified
|
No.
|
Item
|
General Parameter
|
Remark
|
|
1.1
|
Description
|
18650-1S2P rechargeable li ion battery pack 3.7V 5200mAh CB IEC62133 certified | |
|
1.2
|
Battery pack |
18650-1S2P
|
|
|
1.3
|
Typical Capacity
|
5200mAh
|
|
|
1.4
|
Typical Voltage
|
3.7V
|
|
|
1.5
|
End of Charge Voltage
|
4.2V
|
|
|
1.6
|
Standard Charge Current
|
1040mA | |
|
1.7
|
Max Charge Current |
5000mA
|
|
|
1.8
|
Over-Charge Voltage Protection cell
|
4.2V
|
|
|
1.9
|
Min Discharge voltage | 3.0V | |
|
2.0
|
Fast Discharge current | 5000mA | |
|
2.1
|
Max continuous discharge current | 5000mA | |
|
2.2
|
Over-Current Discharge Protection
|
8-16A | |
|
2.3
|
Short circuit protection
|
With protection
|
|
|
2.4
|
Dimension
|
67.0*37.0*21.0mm
|
|
|
2.5
|
Weight
|
about 98±2g
|
|
|
2.6
|
Operation Temperature Range
|
Charge: 0~50°C, Discharge: -20~60°C
|
• Long life cycle, large capacity and good shock resistance
• Low self-discharge and good discharge performance at low temperature
• Strong charging acceptance and quick-charging capability
• Strong over-discharge resistance and charge retention
• Maintenance-free and no acid or water for maintenance in usage
• Excellent large current discharge performance, and have obvious advantages in startup and climbing
• High temperature performance
• Environmental friendly
• Lighter weight smaller size
• Most safe no explosion no fire
• Lithium polymer battery cell manufacturing, with 1000+ existing cell models.
• Cylindrical Lithium ion battery cell manufacturing, with model of 18650, 26650, 14500, 32650, etc.
• Battery assembly with International branded 18650 cells, like Samsung, LG, Panasonic, Sony, etc.
• Battery management system (BMS/PCM) design, production is done in-house.
1.Light: headlamp, emergency light, solar flashlight, searchlight, lanten, bicycle light, LED light, military
flashlight, high-end flashlight, high power flashlight, bright flashlight.
2.Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight,
3.Consumer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
speaker, microphone, sound equipment, audio, Digital camera
4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
electric blanket.
5.Medical devices
6.Instruments and meters: water meter, gas meter.
7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric trolley, electric cart.
8.Power tools: electric drill, mower
9.UPS, backup energy, storage energy.
We warmly welcome OEM design inquiry! We could make customized battery pack specially for you!
