Assembled by 26650 3.3Ah lifepo4 cells, 4S90P, 12V 300Ah LiFePO4 Battery Pack, widely use for
*Solar street light,
*UPS/ power back up,
*LED light,
*Electric golf cart,
*Electric-bike,
*Electric scooter.
*Electric Fishing machine.

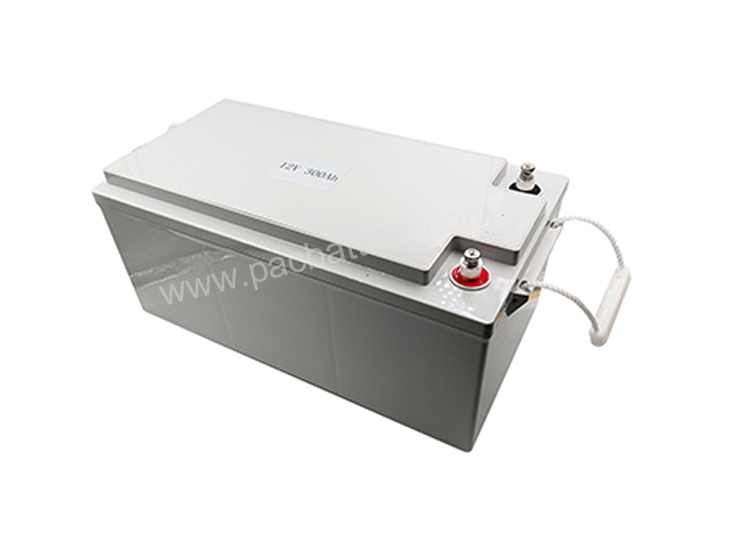

Long cycle battery 12V 300Ah LiFePO4 battery for Caravan
|
No.
|
Item
|
General Parameter
|
Remark
|
|
1.1
|
Description
|
Long cycle battery 12V 300Ah LiFePO4 battery for Caravan
|
4S90P
|
|
1.2
|
Battery Type
|
26650
|
|
|
1.3
|
Typical Capacity
|
300Ah
|
|
|
1.4
|
Typical Voltage
|
12.8V
|
|
|
1.5
|
End of Charge Voltage
|
14.6V
|
|
|
1.6
|
Charge Current
|
0.2C
|
|
|
1.7
|
Charging time
|
5-6 Hours
|
|
|
1.8
|
Over-Charge Voltage Protection cell
|
3.65V
|
|
|
1.9
|
Max continuous charge current
|
100A
|
|
|
2.0
|
Maximum Continuous Discharging Current
|
100A
|
|
|
2.1
|
Over-discharge Voltage Protection cell
|
2.5V
|
|
|
2.2
|
Over-Current Discharge Protection
|
150A
|
|
|
2.3
|
Short circuit protection
|
With protection， high voltage 75V
|
|
|
2.4
|
Dimension
|
520*269*220mm
|
|
|
2.5
|
Weight
|
39kg
|
|
|
2.6
|
Operation Temperature Range
|
Charge 0~55 C, Discharge -10~60 C
|
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20 C~60 C.
Superior Safety: Lithium Iron Phosphate chemistry eliminates
the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.
Lithium polymer battery cell manufacturing, with 1000+ existing cell models.
Cylindrical Lithium ion battery cell manufacturing, with model of 18650, 26650, 14500, 32650, 38120.
Battery assembly with International branded 18650 cells, like Samsung, LG, Panasonic, Sony, etc..
Battery management system (BMS/PCM) design, production is done in-house.
Battery Plastic housing tooling, injection is done in-house.
1.Light: headlamp, emergency light, solar flashlight, searchlight, lanten, bicycle light, LED light, military
flashlight, high-end flashlight, high power flashlight, bright flashlight.
2.Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight,
3.Consumer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
speaker, microphone, sound equipment, audio, Digital camera
4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
electric blanket.
5.Medical devices
6.Instruments and meters: water meter, gas meter.
7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric trolley, electric cart.
8.Power tools: electric drill, mower
9.UPS, backup energy, storage energy.
We warmly welcome OEM design inquiry! We could make customized battery pack specially for you!
