  • Long cycle life 16s Lifepo4 battery pack 51.2v 100Ah with GPS antenna function for remote base station

    CATEGORY AND TAGS:
    Commercial Battery Storage, Rack LiFePO4 Battery

    51V 100Ah LiFePO4 Battery Pack, using prismatic Lifepo4 cell, widely use for

    *solar storage energy,
    *base station backup system,
    *electric golf cart
    *electric lawn mower
    *electric motorcycle



    enquiry
    • Specifications
    • LiFePO4 Battery Advantages
    • One-Stop Services
    • LiFePO4 Applications

    Long cycle life 16s Lifepo4 battery pack 51.2v 100Ah with GPS antenna function for remote base station

    No.
    Item
    General Parameter
    Remark
    1.1
    Description
    Long cycle life 16s Lifepo4 battery pack 51.2v 100Ah with GPS antenna function for remote base station
    1.2
    Cell Type
    prismatic LiFePO4 battery cell
    1.3
    Typical Capacity
    100Ah
    1.4
    Typical Voltage
    51.2V
    1.5
    Typical power
    5kWh
    1.6
    Communication
    It has RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current,
    environment temperature, and charging/discharging current.
    1.7
    Special function
    GPS locate function
    1.8
    Charging voltage
    58.4V
    1.9
    End voltage
    40~44.8V
    2.0
    Standard charge current
    20A
    2.1
    Limiting current
    20A
    2.2
    Max. continuous charge current
    100A
    2.3
    Standard discharge current
    20A
    2.4
    Max. continuous discharge current
    100A
    2.5
    Cycle life
    >3000 times
    2.6
    Weight
    63kgs
    2.7
    Dimension
    442*430*222mm
    2.8
    Operation Temperature Range
    Charge 0~45℃, Discharge -20~55℃

    Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
    Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
    Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
    Wider Temperature Range: -20 C~60 C.
    Superior Safety: Lithium Iron Phosphate chemistry eliminates
    the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
    Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.

    We warmly welcome OEM design inquiry! We could make customized battery pack specially for you!

    • Lithium polymer battery cell manufacturing, with 1000+ existing cell models.
    • Cylindrical Lithium ion battery cell manufacturing, with model of 18650, 26650, 14500, 32650 etc.
    • Battery assembly with International branded 18650 cells, like Samsung, LG, Panasonic, Sony, etc..
    • Battery management system (BMS/PCM) design, production is done in-house.
    • Battery Plastic housing tooling, injection is done in-house.

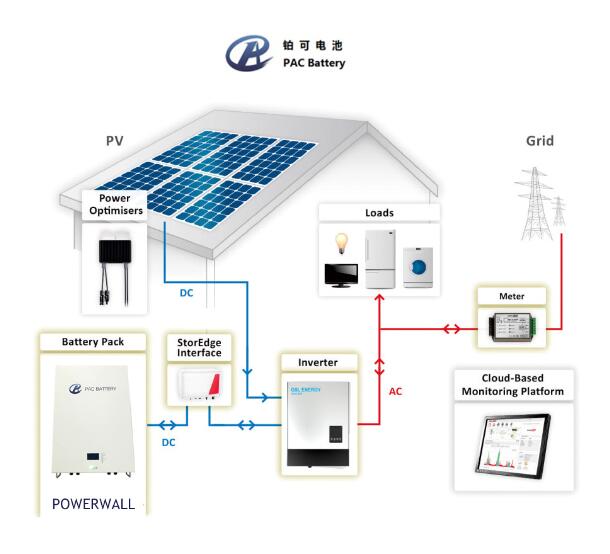

    1. Energy Storage
       --Solar-Wind Power System / City Grid (On/Off) / Community and Family
    2.Back-up System and UPS
       --Telecom Base / CATV system / Computer Server Center / Medical Instrument / Military Equipment
